ARINC Products
Abaco’s ARINC solutions provide feature-rich functionality and a high degree of flexibility combined with a user-friendly design and graphical application support.
BT-ARINC – ARINC 429 Bus Analysis, Simulation and Data Monitoring/Logging Solution
RoHS high density intelligent ARINC interface for PCI Express

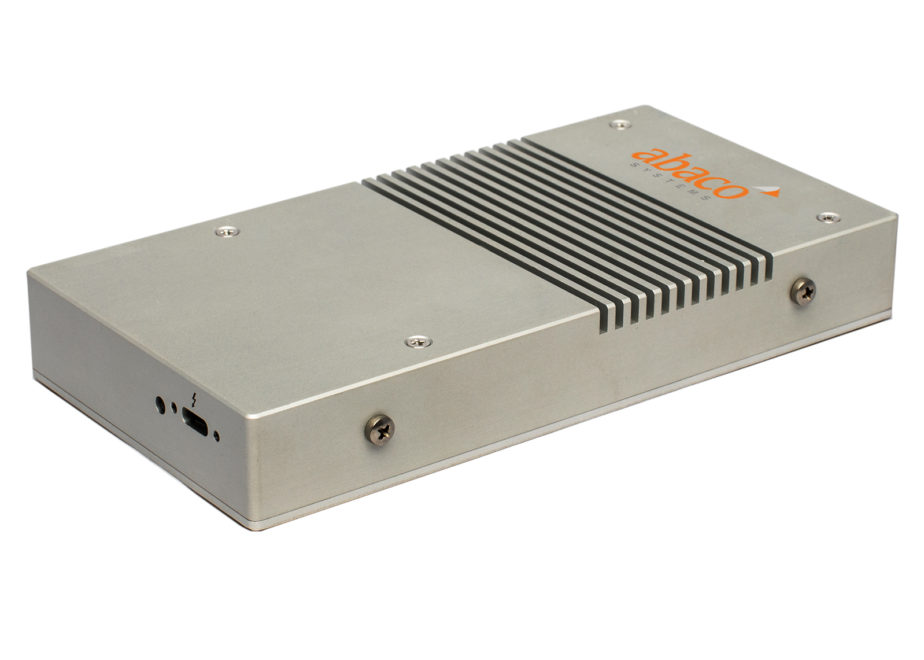

ARINC high density interface for Thunderbolt 3
| Product Name | Model | Form Factor | # ARINC Channels | I/O | Protocol | Options | |
|---|---|---|---|---|---|---|---|
 | Thunderbolt 3 ARINC | RCEI-830A-TB | Thunderbolt 3 | Up to 16 Rx and 16 Tx channels | 429, 573, 575, 582 2-wire | ||

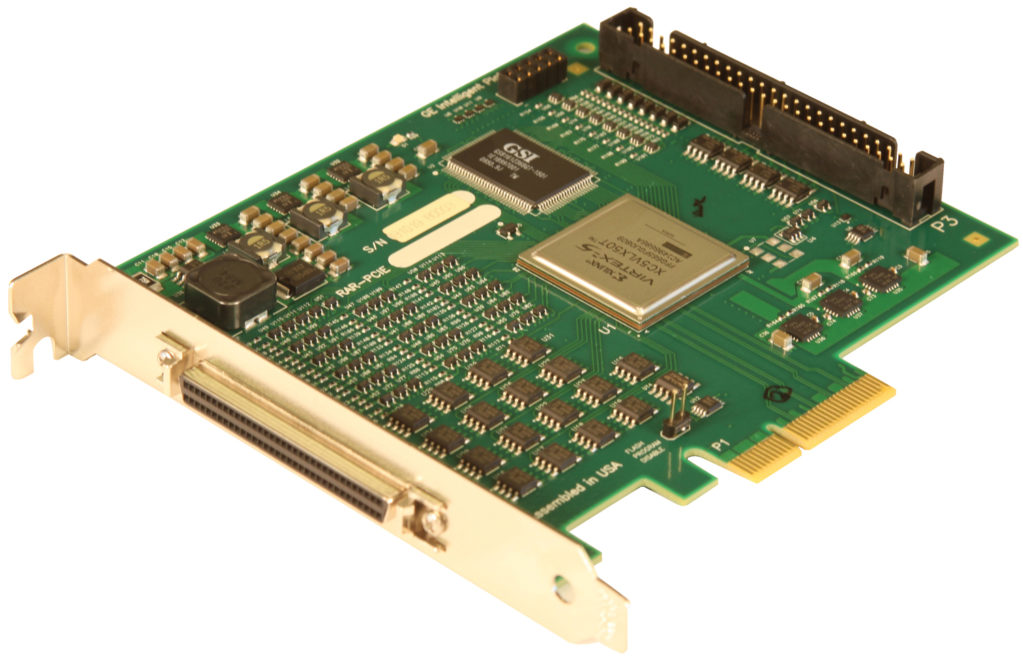

 | PCIE ARINC | RAR-PCIE | PCI Express | 2 to 16 | ARINC 429, 573, 575, 717, 582 2-wire | ||

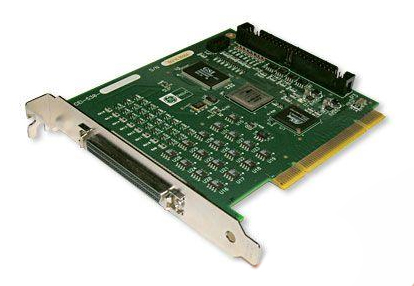

 | PCI ARINC | RCEI-530 | PCI | 2 to 16 | ARINC 429, 573, 575, 717, 582 2-wire | ||

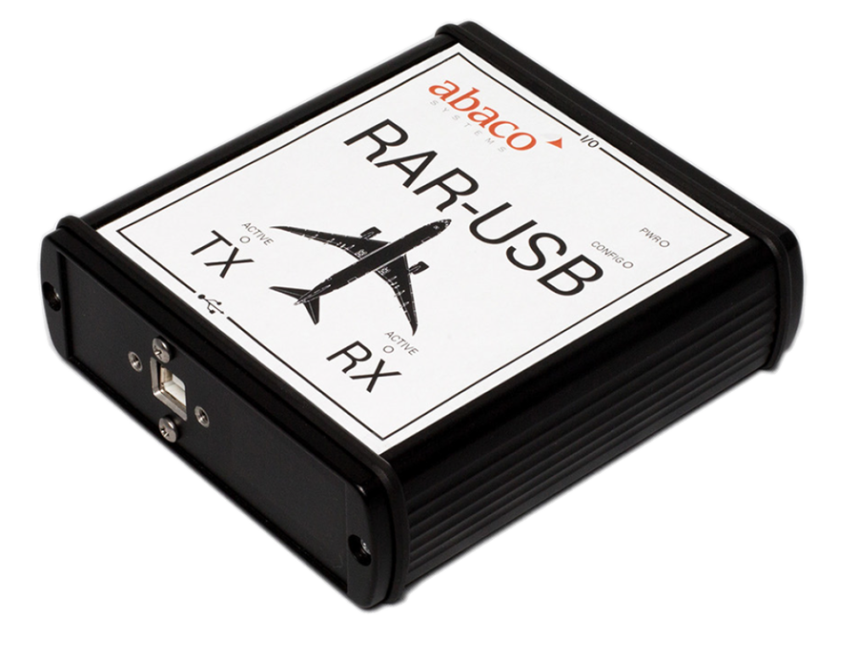

 | USB ARINC | RAR-USB | USB Box | Up to 16 Receive, 5 Transmit | ARINC 429, 573, 575, 717, 582 2-wire | ||
 | cPCI ARINC | RAR-cPCI | cPCI 3U | 2 to 16 | ARINC 429, 573, 575, 717, 582 2-wire | ||
| PXI ARINC | RAR-PXI | PXI | 2 to 16 | ARINC 429, 575, 582 2-wire | ||

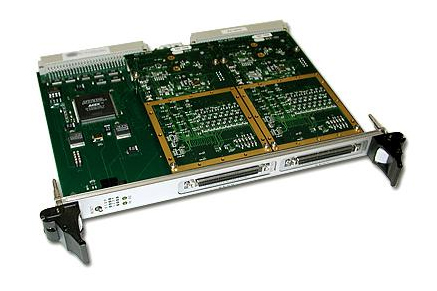

 | VME ARINC | RMAC-VME | VME | 2 to 32 | ARINC 429, 453, 573, 575, 585, 708, 717; RS-232, RS-422, RS-485 | ||

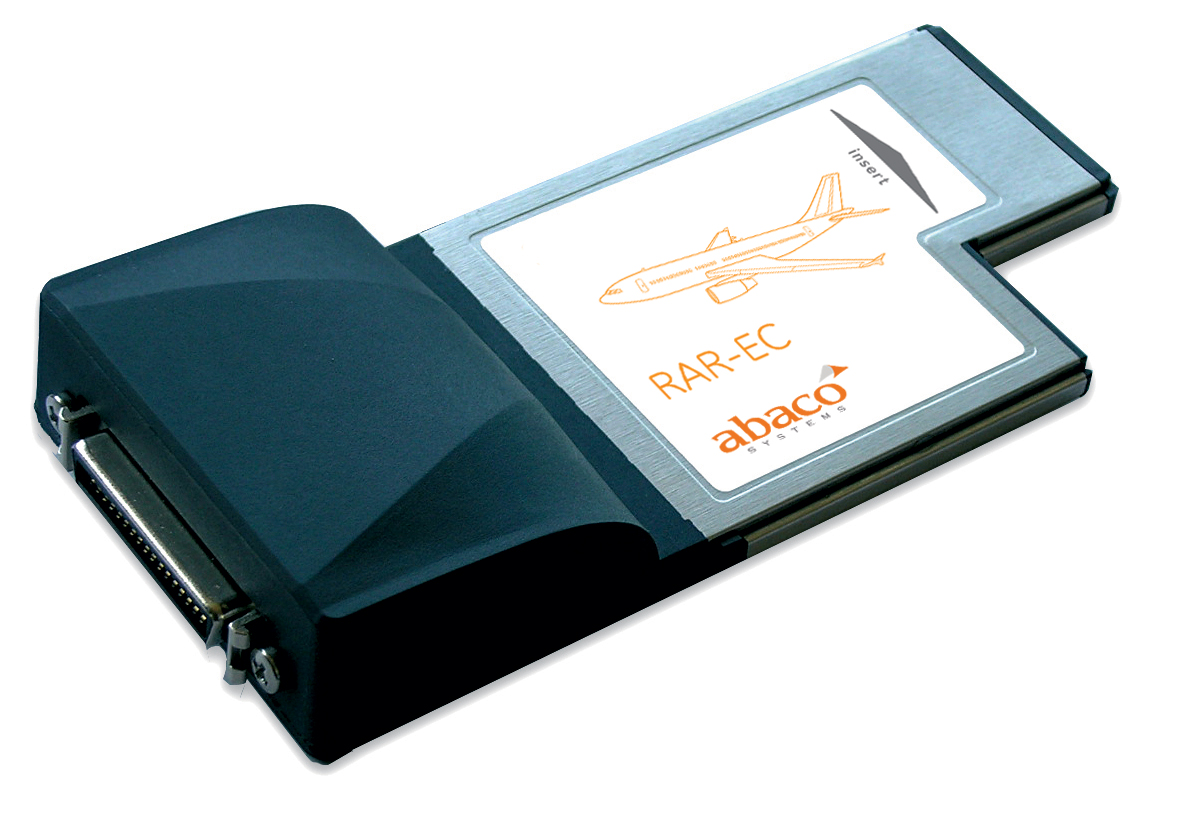

 | Express Card ARINC | RAR-EC | Express Card | 2 to 7 | ARINC 429, 573, 575, 717, 582 2-wire | ||

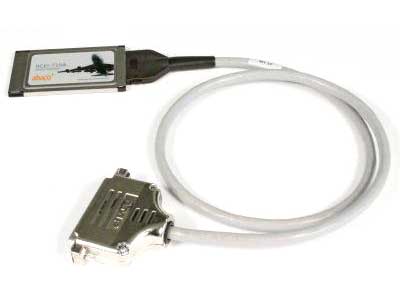

 | PCMCIA ARINC | RCEI-715A | PCMCIA | 2 to 8 | ARINC 429, 573, 575, 717, 568/582 6-wire, 582 2-wire, CSDB, 561/568/572 6-wire | ||
 | VXI ARINC | MAC2-VXI | VXI | 2 to 32 | ARINC 429, 453, 573, 575, 585, 708, 717; RS-232, RS-422, RS-485 | ||

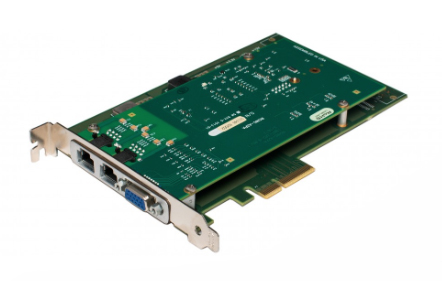

 | PCIE 664 | RCNIC-A2APU4 | PCIE | 1 DR or 2 Single | ARINC 664 | ||
 | PCI 664 | RCNIC-A2PAX | PCI | 2 | ARINC 664 | ||
 | cPCI 664 | RCNIC-A2PA3 | cPCI 3U | 1 DR or 2 Single | ARINC 664 | ||

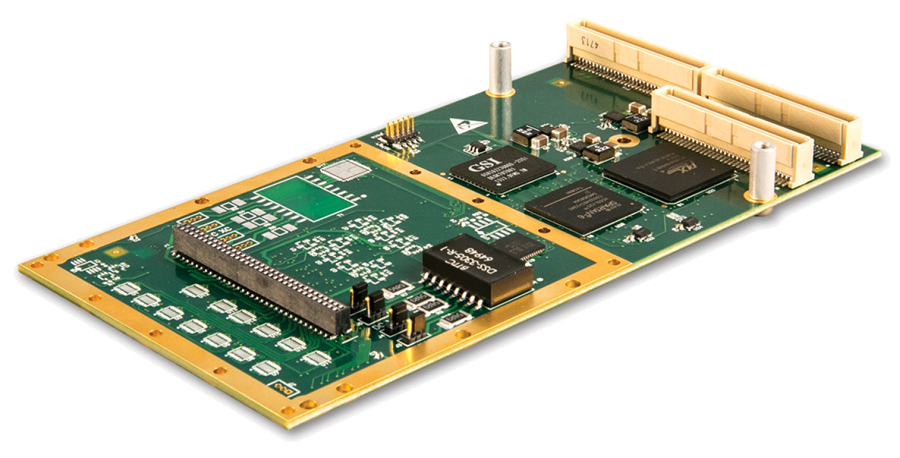

 | PCIE/PCI 708 | RP-708 | PCI and PCIE | 2T/2R | ARINC 708 | ||

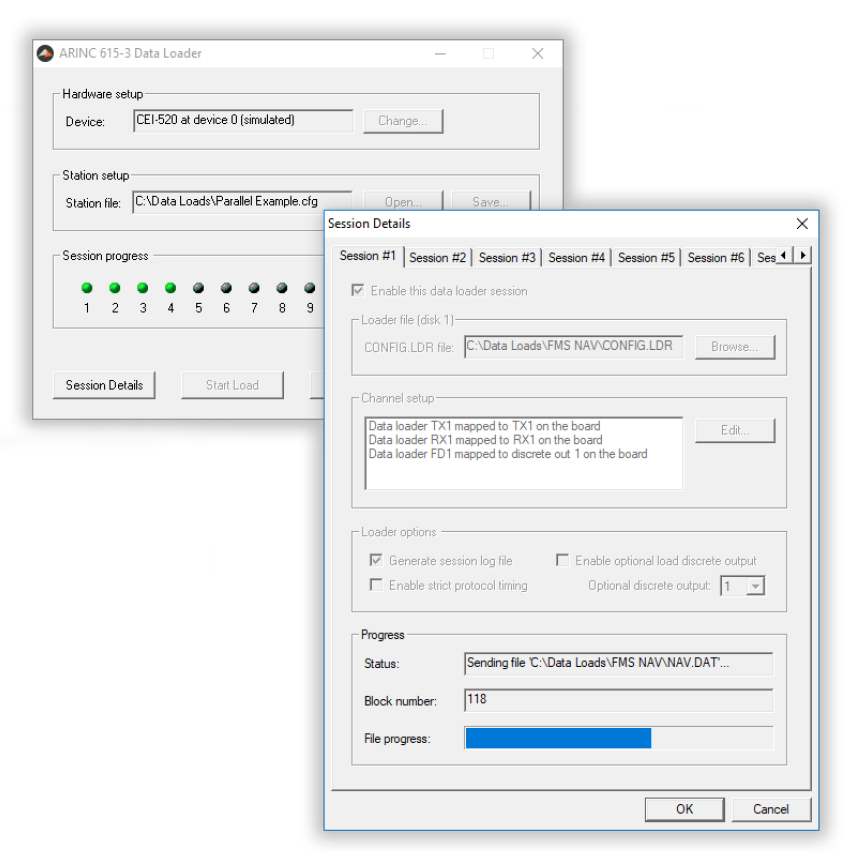

 | ARINC 615-3 Data Loader | CEI-DL Data Loader Software | Thunderbolt, PCIE, PCI, PCMCIA | ||||

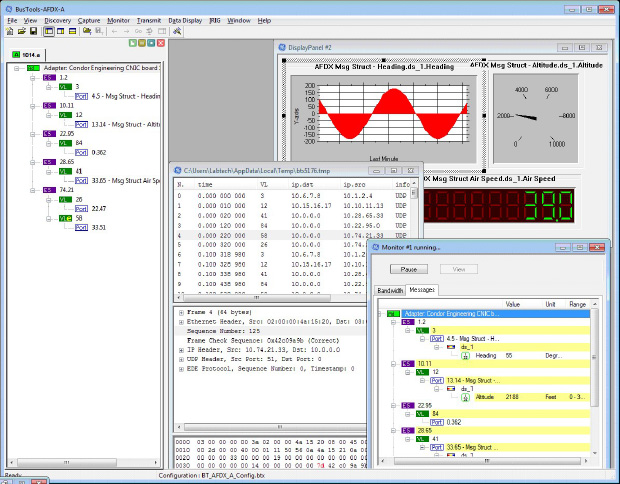

 | ARINC Analyzer Software | ARINC BusTools Software Analyzer | Thunderbolt, USB, PCIE, PCI, PCard, PCMCIA, PXI |
Discontinued ARINC Products
Dualos and Abaco cover a rich history of data bus analyzers and interfaces including SBS Technologies, Condor Engineering, GE FANUC, GE Embedded Systems, Abaco and now Dualos as Abaco’s Avionics Test and Simulation products sales and support partner.
To help those projects and programs going through refresh, we listed the obsolete SBS, Condor Engineering, GE, and Abaco interfaces that have been manufactured over the years. If you find your Mil-Std-1553, ARINC 664, ARINC 429, ARINC 615 or other protocols and interfaces below, we have transition plans and papers. Please contact us to help you transition to a newer data bus analyzer or interface.
| Product | Description |
|---|---|
| A429-cPCI3U | ARINC 429 programmable interface for CompactPCI backplanes. Software configurable for transmit or receive. Eight channels. |
| A429-PC | ARINC 429 programmable interface to ISA buses. Software configurable for transmit or receive. Eight or sixteen channel versions. |
| A429-PC104 | ARINC 429 programmable interface for PC104 backplanes. Software configurable for transmit or receive. Four channels. |
| A429-PCI | ARINC 429 Programmable interface for PCI backplanes. Software configurable for transmit or receive. Eight channels. IRIG available. |
| A429-PCI2 | ARINC 429 programmable interface for PCI backplanes. Software configurable for transmit or receive. Sixteen channels. IRIG available. |
| A429-PCMCIA2 | ARINC 429 programmable interface in a PCMCIA form factor. Eight channels (4 transmit, 4 receive). |
| A429-PMC | ARINC 429 programmable interface for PMC mezzanine. Eight transmit, eight receive fixed channels. Available in commercial, extended temperature, and conduction cooled versions. |
| A429-V2 | ARINC 429 programmable interface for VMEbus. Software configurable for transmit or receive. Sixteen channels. IRIG available. Also available with a special configuration that routes the I/O to P2 connector. |
| CEI-200 | The CEI-200 is a powerful, full-function ARINC 429 interface platform for IBM PC/AT and compatible ISA Bus computers. |
| CEI-220 | The intelligent CEI-220 provides complete, integrated data bus functionality for ARINC 429/575 and related avionics protocols. |
| CEI-300 | The CEI-300 is a flexible and space-saving modular solution for interfacing to ARINC 429 and other avionics databuses in PC/AT (ISA bus) computers. |
| CEI-420A | Available in a range of configurations to match your needs, the intelligent CEI-420A provides complete, integrated databus functionality for ARINC 429/575 and related avionics protocols in embedded PC/104 applications. |
| CEI-520A | The intelligent CEI-520A provides complete, integrated databus functionality for ARINC 429 and related avionics protocols. |
| CEI-620 | The intelligent CEI-620 provides complete, integrated databus functionality for ARINC 429/575 and related avionics protocols. |
| CEI-715 | The CEI-715 is an intelligent, high-density, Type II PC Card (PCMCIA) interface that provides up to 12 fully independent ARINC 429/575 channels, along with up to 4 bi-directional avionics-level I/O discretes. |
| CEI-820 | The intelligent CEI-820 provides complete, integrated databus functionality for ARINC 429 and related avionics protocols. |
| CEI-820TX | The CEI-820TX is designed for applications where a large number of independent ARINC 429 transmit channels are required. |
| CEI-830 | The CEI-830 provides complete, integrated databus functionality for up to 32 channels of ARINC 429, ARINC 575 and selected 2-wire, 32-bit protocols. |
| IP-429HD | The IP-429HD is an intelligent, high-density IP Module (IndustryPack-compatible) interface for ARINC-429. |
| IP-561A | The IP-561A is an interface to ARINC 561 and ARINC 568 6-wire databuses. |
| IP-708 | The IP-708 is a flexible and cost-effective interface for ARINC 708 databuses. |
| IP-717 | The IP-717 is an interface to ARINC 573/717 Harvard Bi-Phase and BPRZ (Bi-Polar Return to Zero) databuses. |
| IP-CSDB< | The IP-CSDB is an intelligent IP Module interface for Commercial Standard Digital Bus avionics protocol and RS-422 applications. |
| P-708 | The P-708 is a two-channel ARINC 708 weather radar display databus PMC module interface, supporting variable frame sizes for test, simulation and embedded applications. |
| R830RX-32 Interface | R830RX-32 RoHS ARINC High Density Interface for PMC |
| VME/VXI-MIO | The VME/VXI-MIO is a flexible and space saving open system solution for interfacing to ARINC 429, MIL-STD-1553 and other avionics databuses in VMEbus & VXI computers. |
